NFA and DFA algorithms visualized using Haskell

github

Find a file

Joscha 1ae25d53bc Improve README readability		2019-10-31 19:37:39 +00:00
app	Do some basic setup	2019-10-21 11:58:32 +00:00
resources	Prepare files for making repository public	2019-10-31 19:33:43 +00:00
src/Rextra	Implement DFA minimization	2019-10-31 19:10:33 +00:00
test	Create new project with stack	2019-10-21 11:43:55 +00:00
.gitignore	Change project name	2019-10-28 13:48:28 +00:00
LICENSE	Prepare files for making repository public	2019-10-31 19:33:43 +00:00
package.yaml	Prepare files for making repository public	2019-10-31 19:33:43 +00:00
README.md	Improve README readability	2019-10-31 19:37:39 +00:00
Setup.hs	Create new project with stack	2019-10-21 11:43:55 +00:00
stack.yaml	Create new project with stack	2019-10-21 11:43:55 +00:00
stack.yaml.lock	Do some basic setup	2019-10-21 11:58:32 +00:00

README.md

rextra

At the moment, rextra can display DFAs and NFAs using Graphviz, convert between NFAs and DFAs, and minimize DFAs.

The representation of DFAs and NFAs assumes an infinite alphabet:

DFA states always contain a default transition (marked with * in the visualisations), which is taken if the current token doesn't appear in any of the other transitions.
NFA transitions either apply to a set of tokens, or to all tokens except a specified set. In the visualisation, the character Σ denotes the alphabet of tokens.

Example

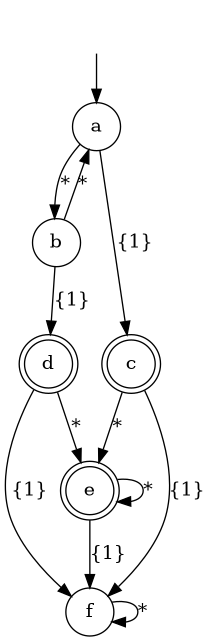

This example minimizes the DFA shown on the wikipedia article about DFA minimization.

Transitions for the token 1 are specified explicitly (where necessary), while transitions for the token 0 are represented by the default transition marked with *.

This ghci session shows the minimization of the DFA mentioned above.

>>> Just a = dfa [ ("a",[('1',"c")],"b"), ("b",[('1',"d")],"a"), ("c",[('1',"f")],"e"), ("d",[('1',"f")],"e"), ("e",[('1',"f")],"e"), ("f",[],"f") ] "a" ["c","d","e"]
>>> saveDotAsPng "dfa.png" $ dfaToDot a

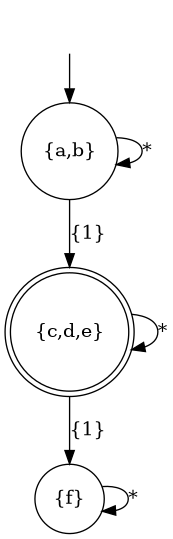

>>> saveDotAsPng "dfa_minimized.png" $ dfaToDot $ minimizeDfa a
